3D Secure Setup

Hidden

This guide provides an overview of the 3D Secure 2 (3DS 2.2 and 2.1 for Visa and 3DS 2.1 for Mastercard) setup and the onboarding process with Marqeta and payment networks, and outlines the integration points you need to plan for during 3D Secure authentication and payment transactions. Use this guide to plan the actions and integrations required to enable 3D Secure 2 features on the Marqeta platform.

Setting up 3D Secure

The following sections describe how to set up 3D Secure on the Marqeta platform.

Setting up 3DS for your use case

For some use cases, such as those for Buy Now, Pay Later (BNPL) applications, configuring Challenge All may result in challenging cards that are not enrolled for OTP or biometrics decisioning. For these cases, implement delegated decisioning at your gateway to prevent unnecessary declines. To do this, perform the decisioning at your gateway to identify the risk for the user and transaction and, if the risk is low, exempt the transaction at the gateway. See option 3 in Available Combinations below.

For detailed information on setting up the best 3D Secure configuration for your use case, contact your Marqeta representative.

Available combinations

The following table shows the available combinations for 3D Secure risk policy and authentication, as well as the amount of effort required.

3D Secure Risk Policy

Authentication Mechanism

Options

Challenge All (Default – No policy chosen)

Delegated Decisioning

Automated Decisioning

Default OTP

Advanced Authentication

Customer Effort

Option 1

○ ○ ○

Option 2

● ● ○

Option 3

● ● ●

Option 4

○ ○ ○

Option 5

● ○ ○

Option 6

● ○ ○

Integration flow

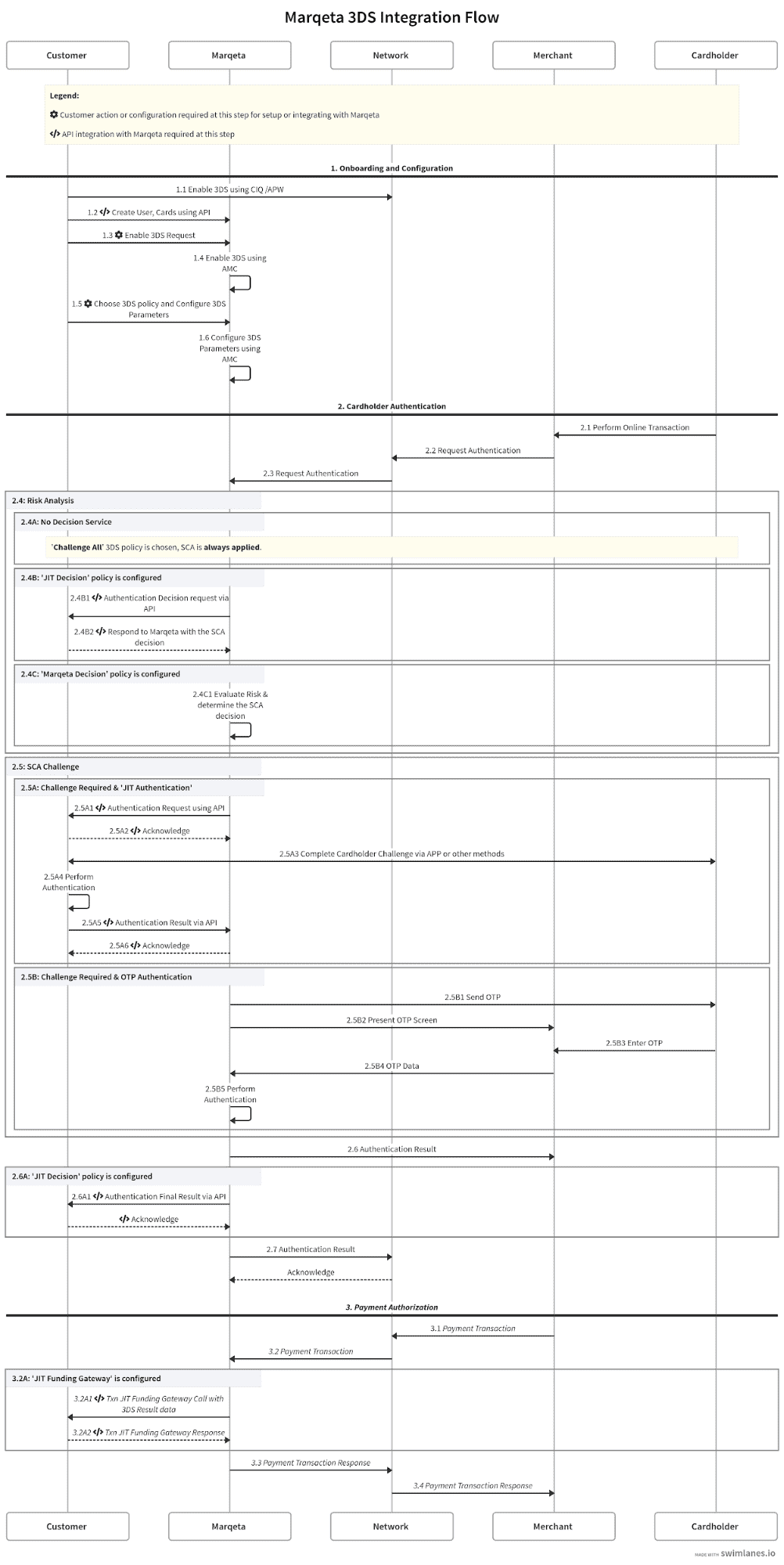

The following figure shows the overall flow for the 3D Secure 2 authentication, as well as for the payment authorization.

Integration flow

Is this helpful?

Yes
No
Setup details

The following sections describe in detail the overall flow shown in the figure above, with a focus on the steps where a specific action or API integration is required.

Step 1 — Setup and onboarding
Step # Summary Details Customer Configuration Required Marqeta API Integration Required

1.1

Enable 3DS using the card network’s CIQ/APW

Enable 3DS with the card network using Visa’s CIQ or Mastercard’s APW and other required documents.

No

No

1.2

Create users, cards using API

Using Marqeta’s API, create users and cards.

No

Yes

1.3

Enable 3DS request

Request to enable 3DS with Marqeta through your Marqeta representative.

Yes

No

1.4

Enable 3DS using the Marqeta Dashboard

Marqeta representative enables 3DS using app.marqeta.com.

No

No

1.5

Choose a 3DS policy and configure 3DS parameters

Choose the appropriate 3DS Risk and Authentication options, then contact your Marqeta representative to have the required parameters configured.

Configuration Parameters:

  • 3DS Decisioning Policy: Delegated Decisioning or Automated Decisioning.

    • Delegated decisioning details – URL, basic auth credentials.

    • If you do not select a decision policy, the Challenge All policy is applied by default.

  • Advanced Authentication:

    • Authentication details (URL, basic auth credentials, etc.) to allow you to challenge the cardholder using your choice of authentication method.

  • OTP screen details:

    • Bank logo for the OTP screen.

    • The no-reply from email address for delivering OTP via email.

    • Customer support phone number.

If you choose the Automated Decisioning policy and you also want to use TRA (Article 18)-based exemptions, you must provide the following each quarter, before the quarter begins:

  • A certificate from the authorities, indicating that you have permission to use TRA-based exemptions.

  • Your BIN sponsor’s quarterly fraud rates, since they are used in TRA (Article 18) decision making.

Yes

No

1.6

Configure 3DS parameters using the Marqeta Dashboard

Marqeta representative enables 3DS configurations using app.marqeta.com.

No

No

Step 2 — Cardholder authentication
Step # Summary Details Customer Configuration Required Marqeta API Integration Required

2.1

Cardholder makes an online transaction

None

No

No

2.2

Merchant requests authentication

None

No

No

2.3

Card network requests authentication

None

No

No

2.4A

If no decisioning policy is configured:

Challenge All authentication requests from the 3DS requestor and/or merchant

2.4B

If Delegated Decisioning is configured:

2.4B1

Delegated Decisioning request via API

Marqeta’s systems make a web request to obtain a decision from you on whether to apply SCA to the request in picture or exempt it from SCA. You must implement the necessary systems to handle this request.

No

Yes

2.4B2

Respond to Marqeta with the SCA decision

Your system must respond to the Marqeta system’s request with the SCA decision within the prescribed SLA.

No

Yes

2.4C

If Automated Decisioning is configured:

2.4C1

Evaluate the risk and decide to exempt or challenge the cardholder

No

No

2.5A

If Challenge All and Advanced Authentication are configured:

2.5A1

Advanced Authentication request via API

Marqeta requests that you authenticate the cardholder (in-app or otherwise), using the API defined by Marqeta. You must be able to process Marqeta’s authentication request using the Marqeta-defined JSON payload.

No

Yes

2.5A2

Acknowledge

Your endpoint should acknowledge Marqeta’s API request with a 200 OK response.

No

Yes

2.5A3

Complete cardholder challenge via mobile APP or other preferred method

You request in-app authentication from the cardholder using the mobile banking APP or another preferred method such as voice calling.

No

No

2.5A4

Perform authentication

You perform the authentication.

No

No

2.5A5

Respond to Marqeta with the authentication result

Marqeta acknowledges with a 200 OK response.

No

Yes

2.5B

If Challenge All and Default OTP is configured:

2.5B1

Marqeta sends OTP via text or email to the registered phone number or email address

None

No

No

2.5B2

Marqeta presents the OTP screen on the merchant’s website

None

No

No

2.5B3

Cardholder enters OTP

None

No

No

2.5B4

OTP data is received by Marqeta

None

No

No

2.5B5

Marqeta performs cardholder authentication

None

No

No

2.6

Marqeta sends the cardholder authentication result to the merchant

None

No

No

2.6A

If Delegated Decisioning is configured:

2.6A1

Authentication final result via API

Marqeta’s systems will make a web request to update the authentication results. Your endpoint should acknowledge Marqeta’s API request with a 200 OK response.

No

Yes

2.7

Marqeta sends the cardholder authentication result to the card network

None

No

No

Step 3 — Payment authorization
Step # Summary Details Customer Configuration Required Marqeta API Integration Required

3.1

Merchant initiates the payment transaction

None

No

No

3.2

Card network routes the payment transaction to Marqeta

None

No

No

3.2A

If Gateway JIT Funding is configured:

3.2A1

Marqeta initiates a Gateway JIT Funding request with 3DS result data

Marqeta makes a JIT call to your JIT gateway endpoint. This call includes transaction-related information: how the transaction was authenticated and whether or not the authentication was successful. At this time, you can decide to approve or decline the payment transaction.

No

Yes

3.2A2

JIT gateway response

You respond back to the JIT gateway call with your decision (approve or deny).

No

Yes

3.3

Marqeta sends the payment transaction response to the card network

None

No

No

3.4

The card network sends the payment transaction response to the merchant

None

No

No

Enabling 3D Secure

To enable 3D Secure, log into the Marqeta Dashboard and go to Control center > 3D secure. For detailed instructions, see Enabling 3D Secure in Control Center.

APIs and contracts

You must provide code for the following endpoints, which Marqeta calls during the 3D Secure 2 flow:

  • Delegate decisioning – determine whether to send an SCA.

  • Notify a 3DS completion status.

  • Initiate an Advanced Authentication.

  • Update an authentication result to Marqeta.

For detailed information on these endpoints, see 3D Secure in the Core API Reference.

When to use each interface

Depending on the 3D Secure options you choose, you will need to implement and configure for one or more of the API endpoints described above.

The following table lists the policies along with the required actions:

Option Policy Action

1

Challenge All and Default OTP

No API integration necessary

2

Delegated Decisioning and Default OTP

Delegated Decisioning request
Notify a 3DS completion status

3

Delegated Decisioning and Advanced Authentication

Delegated Decisioning request
Notify a 3DS completion status
Advanced Authentication request
Advanced Authentication result

4

Automated Decisioning and Default OTP challenge

No API integration necessary

5

Automated Decisioning and Advanced Authentication

Advanced Authentication request
Advanced Authentication result

6

Challenge All and Advanced Authentication

Advanced Authentication request
Advanced Authentication result
