Set Up a Webhook Handler

To track events such as transactions, case events, and chargeback state changes in the card network, you must implement an API service that listens to events from Marqeta. You must setup the webhook handler before sending a POST request for a dispute. In production, you will host this service on your own server. When testing the service in your private sandbox, you must run the server locally and expose it to the internet through a secure tunnel. There are many tools available to set up a secure tunnel, such as ngrok, Cloudflare Tunnel, or Tailscale Funnel. This guide describes how to set up a secure tunnel using ngrok. By the end of this guide, you will understand how to:

Implement a testing webhook API for dispute events locally.
Serve your webhook handler via ngrok for testing in the private sandbox.
Send a POST request to the Private Sandbox environment.

Prerequisites

Ensure that you have set up the following before beginning:

A Marqeta account with access to the private sandbox
Your program short code and base64-encoded credentials
Node.js installed (if using the boilerplate app)
An ngrok account with the CLI installed

Implementing an API or webhook handler app

To receive and process Marqeta events, you must implement a local server app with a POST endpoint that listens for these events. A single webhook handler can receive events from multiple services in the Marqeta platform.

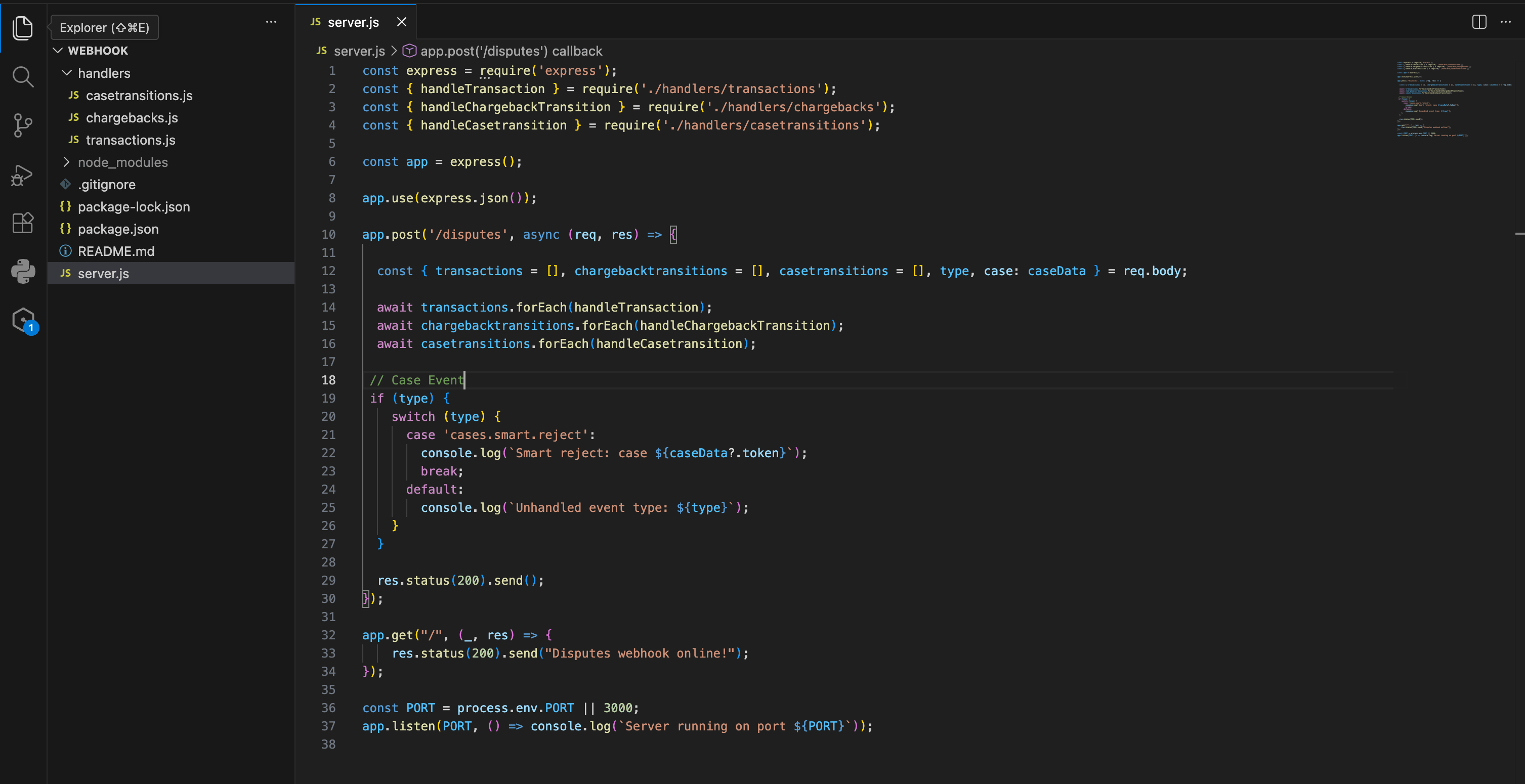

Installing a boilerplate app to handle webhooks

Marqeta provides you with a boilerplate app to test webhook handling.

To download and run the app:

Download the Node JS Disputes webhook handler app by clicking here. (ZIP file, 45 KB)

Install dependencies in the root directory using the command npm install.

Run the server locally with npm run dev

Creating your own app to handle webhooks

If you do not want to use the Node JS Disputes webhook handler app, you can write your own code to implement a webhook handler app. Your webhook handler must have a POST endpoint in a path of your choice, for example /disputes.

Listening for disputes events

For disputes handling, configure your endpoint to listen for these events:

transaction.*
chargebacktransition.*
caseevent.*
casetransition.*

When you configure your endpoint to listen for the events listed above, you will receive the following types of webhooks:

Transaction webhooks - Marqeta sends transaction webhooks whenever funds move between any entities on the Marqeta platform.
Chargeback transition webhooks - Marqeta sends chargeback transition webhooks during every state transition of a chargeback. Marqeta triggers an event each time the status changes.
Case events webhooks - Case events represent actions that do not involve immediate money movement or standard status changes. Examples include:
- Smart reject: When Marqeta rejects a transaction before it is submitted to the card network.
- Provisional credit: When a credit becomes permanent for Reg E cases.
Case transitions webhooks (optional) - These webhooks track internal state transitions from Marqeta. They provide updates on case movements before a dispute is submitted to the card network. This step is optional because your organization will initiate the API calls that trigger these transitions.

Tunneling your server to the internet with ngrok

With your server running locally, you can expose it to the public internet by completing the following steps:

Create or sign in to your ngrok account and install the CLI. Complete the initial steps in ngrok’s Setup Guide.

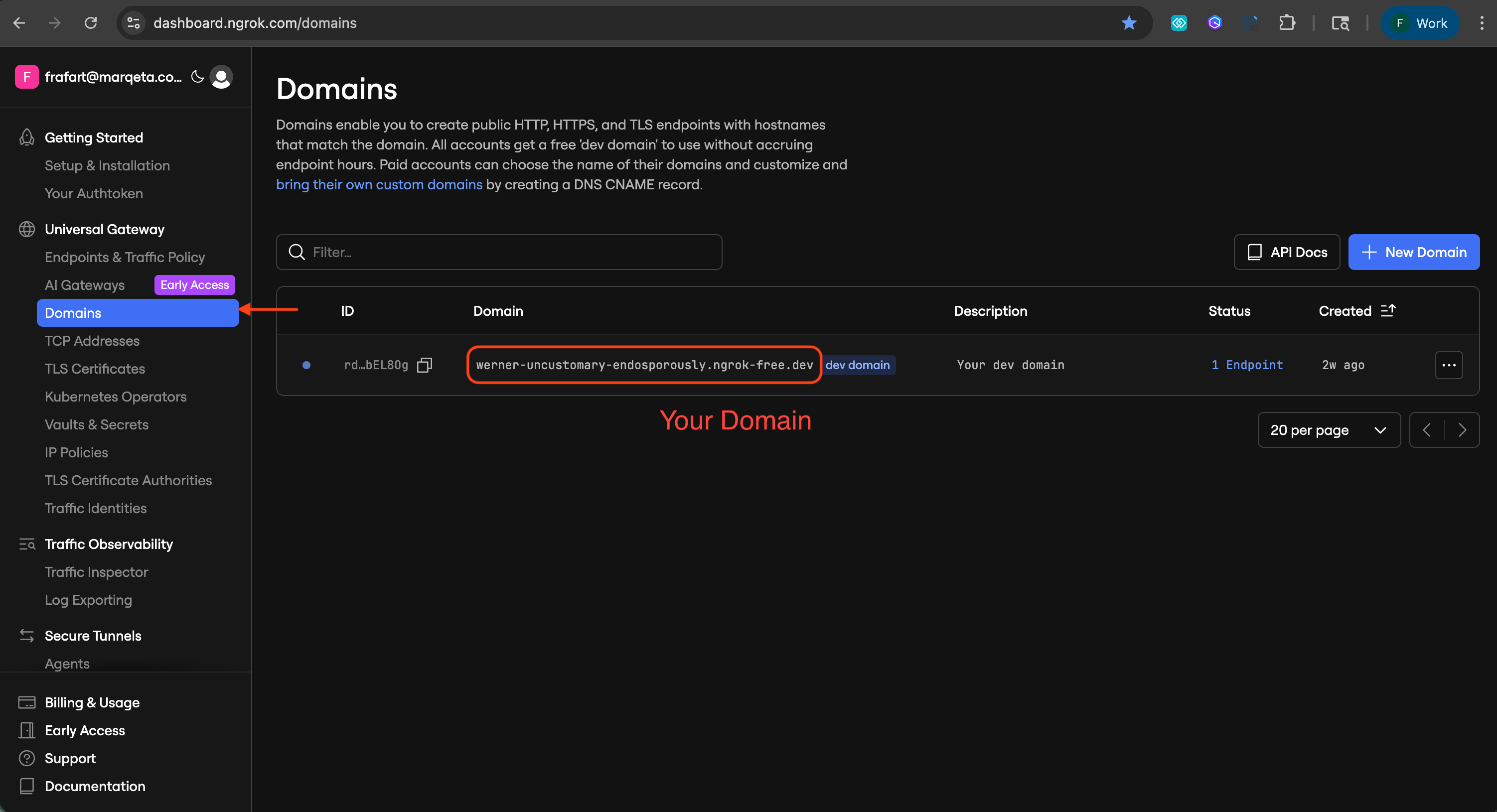

Find your unique domain in the ngrok dashboard. This is the domain your local server will have on the public internet.

Run the command ngrok http --url <your_ngrok_domain> <port_for_your_app> to expose your domain to the public internet.

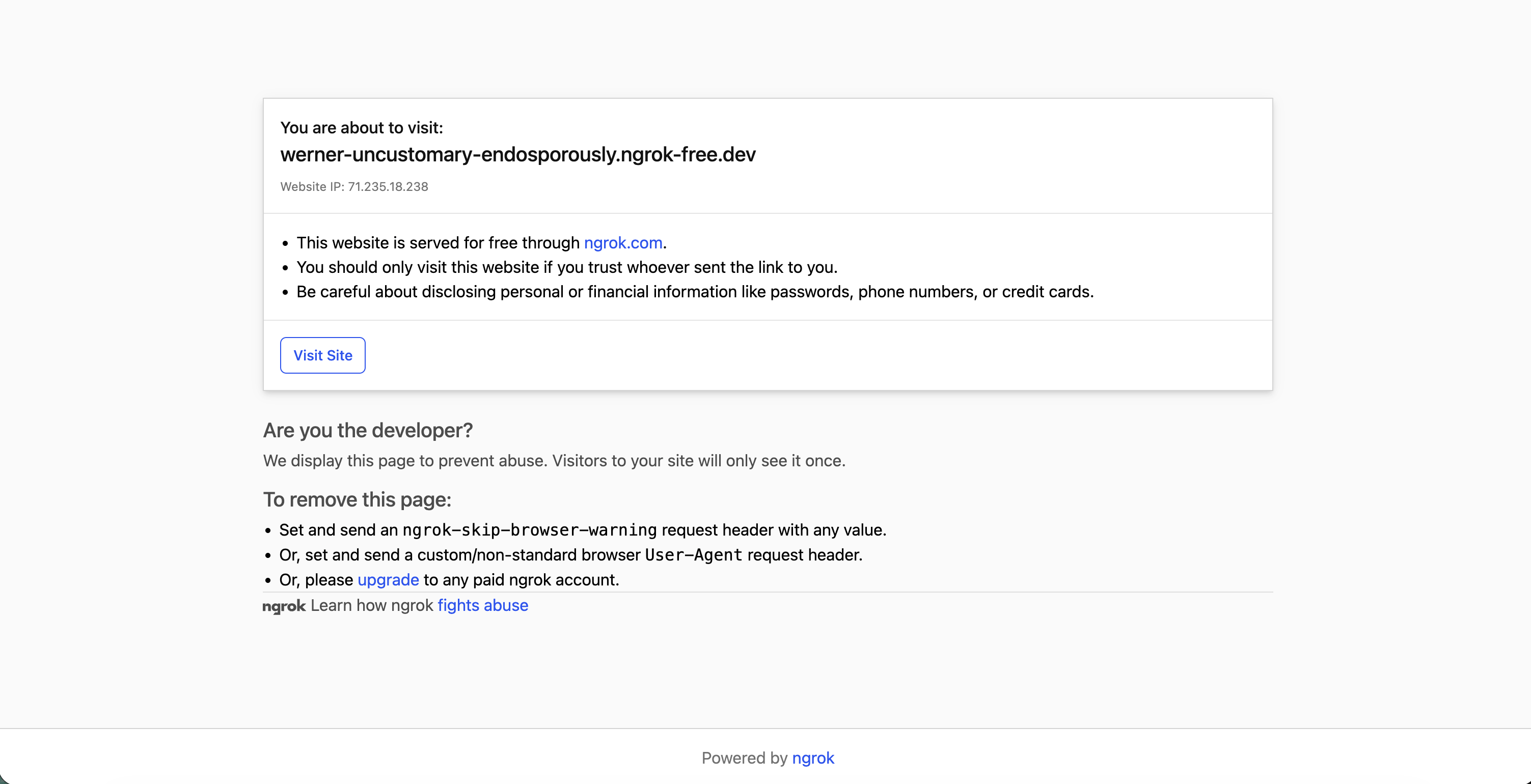

Go to your ngrok domain in your browser to ensure your server is reachable. ngrok displays a security warning. Select Visit Site.

If you are using the boilerplate app, the message Disputes webhook online! appears in your browser.

Submitting a webhook request

With your webhook handler app ready to receive requests from Marqeta, send a POST request to the /webhooks endpoint in your private sandbox environment.

Sample request body

The events array in the examples below uses "*" to subscribe to all event types, which is convenient for sandbox testing. In production, you can limit this to only the events your integration needs. For disputes, use the following events:

["transaction.*", "chargebacktransition.*", "caseevent.*", "casetransition.*"]

Important

Include the path to your POST endpoint in the url, not only your ngrok domain.
A secret for request signatures is not required, but if you provide it you must also send a signature_algorithm as well. HMAC_SHA_256 is recommended.
Provide a token to identify the specific webhook.
Note the following before you use the sample request:
- If you are using a secret for request signatures, the secret must be 20–50 characters long.
- basic_auth-password must be 20–50 characters long.

curl -X POST "https://your-subdomain.marqeta.com/v3/webhooks" \
    -H "X-Marqeta-Program-Short-Code: your-program-code" \
    -H "Authorization: Basic YOUR_BASE64_ENCODED_STRING" \
    -H "Content-Type: application/json" \
    -d '{
        "name": "disputes_test",
        "active": true,
        "config": {
            "url": "https://your-ngrok-domain.ngrok-free.app/disputes",
            "secret": "********************",
            "signature_algorithm": "HMAC_SHA_256",
            "basic_auth_username": "your_username",
            "basic_auth_password": "********************"
        },
        "events": [
            "*"
        ],
        "token": "452fec74-7c8d-48b9-92ae-32737a9caa6e"
    }'

After you save the configuration, Marqeta will begin sending notifications to your specified endpoint.

A secret for request signatures is not required, but if you provide it you must also send a signature_algorithm as well. HMAC_SHA_256 is recommended.
Provide a token to identify the specific webhook.

Sample response body

Response Example

JSON

{
  "token": "452fec74-7c8d-48b9-92ae-32737a9caa6e",
  "name": "disputes_test",
  "active": true,
  "config": {
    "url": "https://<your_ngrok_domain>.dev/disputes",
    "secret": "M**********t",
    "basic_auth_username": "f**********o",
    "basic_auth_password": "M**********d",
    "signature_algorithm": "HMAC_SHA_256",
    "custom_header": {},
    "use_mtls": false
  },
  "events": [
    "*"
  ],
  "created_time": "2026-03-02T16:25:24Z",
  "last_modified_time": "2026-03-02T16:25:24Z"
}

Marqeta masks sensitive fields in the response — the asterisks in secret, basic_auth_username, and basic_auth_password are expected and indicate that the values were saved successfully.

Testing the webhook handling app

You can test your webhook handling app by simulating a transaction. Check your server logs to ensure your service receives the payload.

Sample webhook log

Webhook Log Example

{
    transactions: [
        {
            type: 'authorization',
            state: 'PENDING',
            identifier: '7',
            token: '019caffa-3a69-72ec-9bd8-ee37cfe14078',
            user_token: 'f6c14295-e9af-463a-9acd-7b078e7c7e31',
            acting_user_token: 'f6c14295-e9af-463a-9acd-7b078e7c7e31',
            card_token: 'e25551b1-f47a-4310-a563-1a02cd09e0f7',
            card_product_token: '902e55cb-f03d-4314-8214-413a746d27f0',
            network_metadata: [Object],
            is_recurring: false,
            gpa: [Object],
            gpa_order: [Object],
            duration: 896,
            created_time: '2026-03-02T19:15:37Z',
            user_transaction_time: '2026-03-02T19:15:37Z',
            settlement_date: '2026-03-02T00:00:00Z',
            request_amount: 10.1,
            amount: 10.1,
            currency_conversion: [Object],
            currency_code: 'USD',
            approval_code: '987651',
            response: [Object],
            network: 'MASTERCARD',
            acquirer_fee_amount: 0,
            acquirer: [Object],
            user: [Object],
            card: [Object],
            card_security_code_verification: [Object],
            fraud: [Object],
            issuer_received_time: '2026-03-02T19:15:37.704Z',
            issuer_payment_node: '64cd45fb8656d9b4e71e8340652158c8',
            network_reference_id: 'MPW1371272560302',
            acquirer_reference_data: 'MPW137127256',
            local_transaction_date: '2026-03-02T07:15:37Z',
            digital_wallet_token_transaction_service_provider_info: {},
            card_acceptor: [Object],
            pos: [Object],
            transaction_metadata: [Object]
        }
    ]
}
